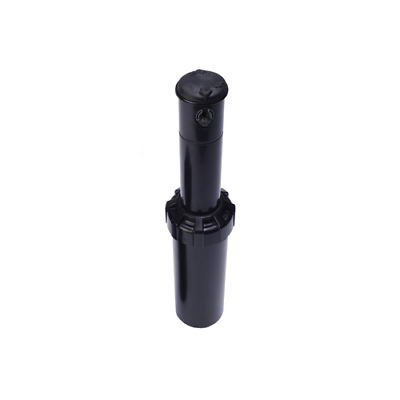

Toro T5P RapidSet 5 in pop-up rotors

The Toro T5P RapidSet is a gear-driven landscape rotor with tool-free arc adjustment. Both listed variants have a 5 in (127 mm) pop-up, check valve and fitted 3.0 nozzle; choose the standard riser or stainless-steel-riser model.

Performance and adjustment

• Adjustable arc: 40° to 360°
• Radius range for the T5 family: 7.6 to 15.2 m
• ¾ in inlet
• RapidSet slip-clutch arc adjustment without tools
• Airfoil nozzle system; standard and low-angle nozzle options are available for the range

Choose the correct model

• T5PCK3.0-RS: standard riser, check valve and 3.0 nozzle
• T5PCKSS3.0-RS: stainless-steel riser, check valve and 3.0 nozzle

Check the required radius, precipitation rate, inlet thread standard and nozzle duty against the rest of the zone before installation. Set the arc only after confirming the fixed side and intended watering boundary.
